Color Request Rows Workflow

In this tutorial, we will create a passive workflow that will color highlight in-scope GET requests within traffic tables.

Creating a Passive Workflow

To begin, navigate to the Workflows interface, select the Passive tab, and click the + New workflow button.

Next, rename the workflow by typing in the Name input field. You can also provide an optional description of the workflow's functionality by typing in the Description input field.

Nodes and Connections

Too add nodes to the workflow, click on + Add Node button and then the + Add button of a specific node.

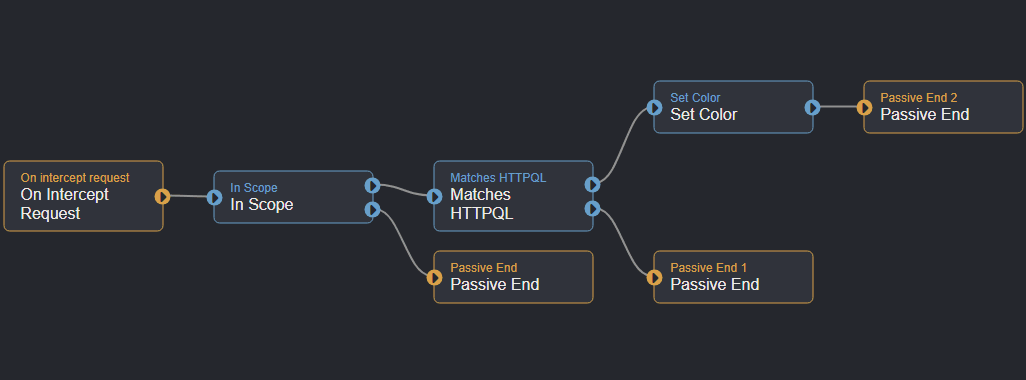

For this workflow, the overall node layout will be:

TIP

Passive workflows do not require Passive End nodes in order to exit execution properly.

• The On Intercept Request node outputs $on_intercept_request.request objects which represent proxied requests.
• The In Scope node checks if the value of a request's Host header is included in the in-scope list of a scope preset. If it is not - the workflow will end.
• In-scope requests will be passed to the Matches HTTPQL node which checks if a request satisfies an HTTPQL statement. If it does not - the workflow will end.
• If a request satisfies the HTTQL query statement, it is passed to the Set Color node. If it does not - the workflow will end.
• Once a request has been processed by the Set Color node, the workflow will end.

Coloring In-Scope GET Requests

Click on the Matches HTTPQL node to access its editor. Then, click within the query environment and type in the following HTTPQL statement:

req.method.eq:"GET"

Next, ensure the $on_intercept_request.request object is referenced as input to the Matches HTTPQL node.

Close the editor window, click on the Set Color node to access its editor, and type in a color hex code in the Color input field.

Also ensure to reference the $on_intercept_request.request object in the Set Color node.

Once these steps are completed, close the editor window and click on the Save button to update and save the configuration.

Testing the Workflow

To test the workflow, enable proxying and navigate to an in-scope domain in the browser.

The Result

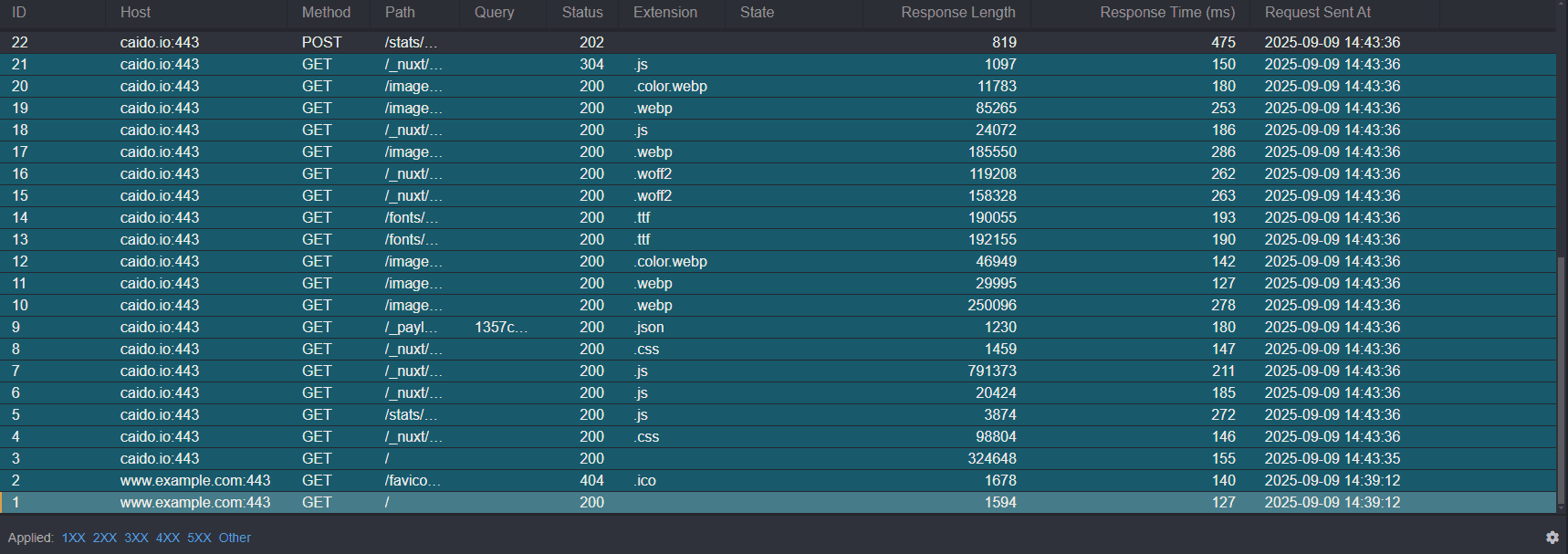

All in-scope GET requests will be color highlighted within the traffic tables:

The full workflow is provided below, ready to be imported.

Full workflow

{
  "description": "In-scope GET request rows in traffic tables are highlighted in blue.",
  "edition": 2,
  "graph": {
    "edges": [
      {
        "source": {
          "exec_alias": "exec",
          "node_id": 0
        },
        "target": {
          "exec_alias": "exec",
          "node_id": 2
        }
      },
      {
        "source": {
          "exec_alias": "true",
          "node_id": 2
        },
        "target": {
          "exec_alias": "exec",
          "node_id": 3
        }
      },
      {
        "source": {
          "exec_alias": "false",
          "node_id": 3
        },
        "target": {
          "exec_alias": "exec",
          "node_id": 1
        }
      },
      {
        "source": {
          "exec_alias": "true",
          "node_id": 3
        },
        "target": {
          "exec_alias": "exec",
          "node_id": 6
        }
      },
      {
        "source": {
          "exec_alias": "exec",
          "node_id": 6
        },
        "target": {
          "exec_alias": "exec",
          "node_id": 5
        }
      },
      {
        "source": {
          "exec_alias": "false",
          "node_id": 2
        },
        "target": {
          "exec_alias": "exec",
          "node_id": 7
        }
      }
    ],
    "nodes": [
      {
        "alias": "on_intercept_request",
        "definition_id": "caido/on-intercept-request",
        "display": {
          "x": -200,
          "y": -10
        },
        "id": 0,
        "inputs": [],
        "name": "On intercept request",
        "version": "0.1.0"
      },
      {
        "alias": "passive_end",
        "definition_id": "caido/passive-end",
        "display": {
          "x": 450,
          "y": 80
        },
        "id": 1,
        "inputs": [],
        "name": "Passive End 1",
        "version": "0.1.0"
      },
      {
        "alias": "in_scope",
        "definition_id": "caido/in-scope",
        "display": {
          "x": 10,
          "y": 0
        },
        "id": 2,
        "inputs": [
          {
            "alias": "request",
            "value": {
              "data": "$on_intercept_request.request",
              "kind": "ref"
            }
          }
        ],
        "name": "In Scope",
        "version": "0.1.0"
      },
      {
        "alias": "matches_httpql",
        "definition_id": "caido/httpql-matches",
        "display": {
          "x": 230,
          "y": -10
        },
        "id": 3,
        "inputs": [
          {
            "alias": "query",
            "value": {
              "data": "req.method.eq:\"GET\"",
              "kind": "string"
            }
          },
          {
            "alias": "request",
            "value": {
              "data": "$on_intercept_request.request",
              "kind": "ref"
            }
          }
        ],
        "name": "Matches HTTPQL",
        "version": "0.2.0"
      },
      {
        "alias": "passive_end_1",
        "definition_id": "caido/passive-end",
        "display": {
          "x": 660,
          "y": -90
        },
        "id": 5,
        "inputs": [],
        "name": "Passive End 2",
        "version": "0.1.0"
      },
      {
        "alias": "set_color",
        "definition_id": "caido/color-set",
        "display": {
          "x": 450,
          "y": -90
        },
        "id": 6,
        "inputs": [
          {
            "alias": "color",
            "value": {
              "data": "#185A6C",
              "kind": "string"
            }
          },
          {
            "alias": "request",
            "value": {
              "data": "$on_intercept_request.request",
              "kind": "ref"
            }
          }
        ],
        "name": "Set Color",
        "version": "0.1.0"
      },
      {
        "alias": "passive_end_2",
        "definition_id": "caido/passive-end",
        "display": {
          "x": 230,
          "y": 80
        },
        "id": 7,
        "inputs": [],
        "name": "Passive End",
        "version": "0.1.0"
      }
    ]
  },
  "id": "bbf38766-0f9d-45af-a823-f230b9134606",
  "kind": "passive",
  "name": "Color In-Scope GET Requests"
}
