Add a Header Workflow
In this tutorial, we will create a passive workflow that will add a header to an in-scope request and resend the request with it.
Creating a Passive Workflow
To begin, navigate to the Workflows interface, select the Passive
tab, and click the + New workflow
button.

Next, rename the workflow by typing in the Name
input field. You can also provide an optional description of the workflow's functionality by typing in the Description
input field.
Nodes and Connections
Too add nodes to the workflow, click on + Add Node
button and then the + Add
button of a specific node.

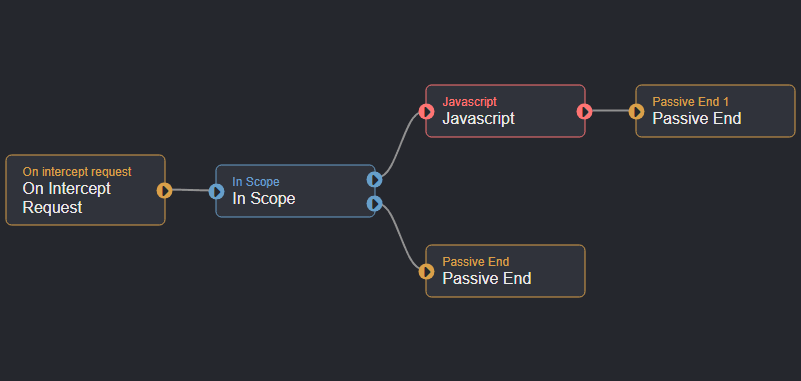

For this workflow, the overall node layout will be:

TIP
Passive workflows do not require Passive End
nodes in order to exit execution properly.
- The
On Intercept Request
node outputs$on_intercept_request.request
objects which represent proxied requests. - The
In Scope
node checks if the value of a request's Host header is included in the in-scope list of a scope preset. If it is not - the workflow will end. - In-scope requests will be passed to the
Javascript
node. - Once a request has been processed by the script in the
Javascript
node, the workflow will end.
Adding a Header to a Request
Click on the Javascript
node to access its editor. Then, click within the coding environment, select all of the existing code, and replace it with the following script:
/**
* @param {HttpInput} input
* @param {SDK} sdk
* @returns {MaybePromise<Data | undefined>}
*/
export async function run({ request, response }, sdk) {
if (request) {
const spec = request.toSpec();
spec.setHeader("Header-Name", "header-value");
let resend = await sdk.requests.send(spec);
if (resend.response) {
let finding = {
title: `Custom Header Passive Workflow.`,
description: `Request ${resend.request.getId()} ${resend.request.getMethod()} ${resend.request.getPath()} to ${resend.request.getHost()} was resent with custom header.`,
reporter: "Add Header & Resend Request",
request: resend.request
};
await sdk.findings.create(finding);
}
}
}

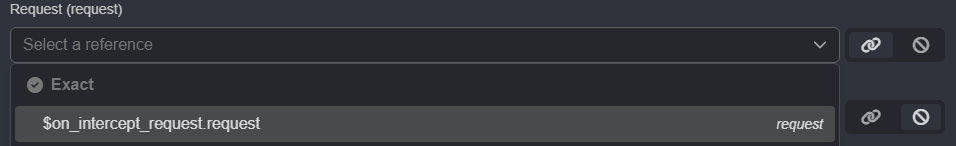

Next, ensure the $on_intercept_request.request
object is referenced as input to the Javascript
node.

Once these steps are completed, close the editor window and click on the Save
button to update and save the configuration.
Script Breakdown
First, an asynchronous function is defined that takes a proxied request
and response
object pair and the sdk
interface object as parameters. The script will execute every time an in-scope request object is passed from the In Scope
node.
export async function run({ request, response }, sdk) {
if (request) {
As request objects are initially immutable, the .toSpec()
method is used to make a copy of the request object so modifications can be made. The mutable request is stored in the spec
variable.
const spec = request.toSpec();
Next, the .setHeader("Header-Name", "header-value")
method is used to add a header to the copy of the request object.
spec.setHeader("Header-Name", "header-value");
Then, sdk.requests.send(spec)
is used to send the modified request.
Since we must wait for the request to be sent and response to be returned, the await
directive is used.
The request and its corresponding response are stored in the resend
variable.
let resend = await sdk.requests.send(spec);
If a response is returned, a finding
object is created. The request
property is the request that includes our custom header.
if (resend.response) {
let finding = {
title: `Custom Header Passive Workflow.`,
description: `Request ${resend.request.getId()} ${resend.request.getMethod()} ${resend.request.getPath()} to ${resend.request.getHost()} was resent with custom header.`,
reporter: "Add Header & Resend Request",
request: resend.request
};
Finally, the creation of the finding is awaited to give it time to be processed on the backend.
await sdk.findings.create(finding);
}
}
}
Testing the Workflow
To test the workflow, type in an in-scope domain in the connection URL input field. Also ensure it is the value of the request's Host header.
Next, click on the Run
button. A message will appear notifying you that the workflow executed successfully.

The Result

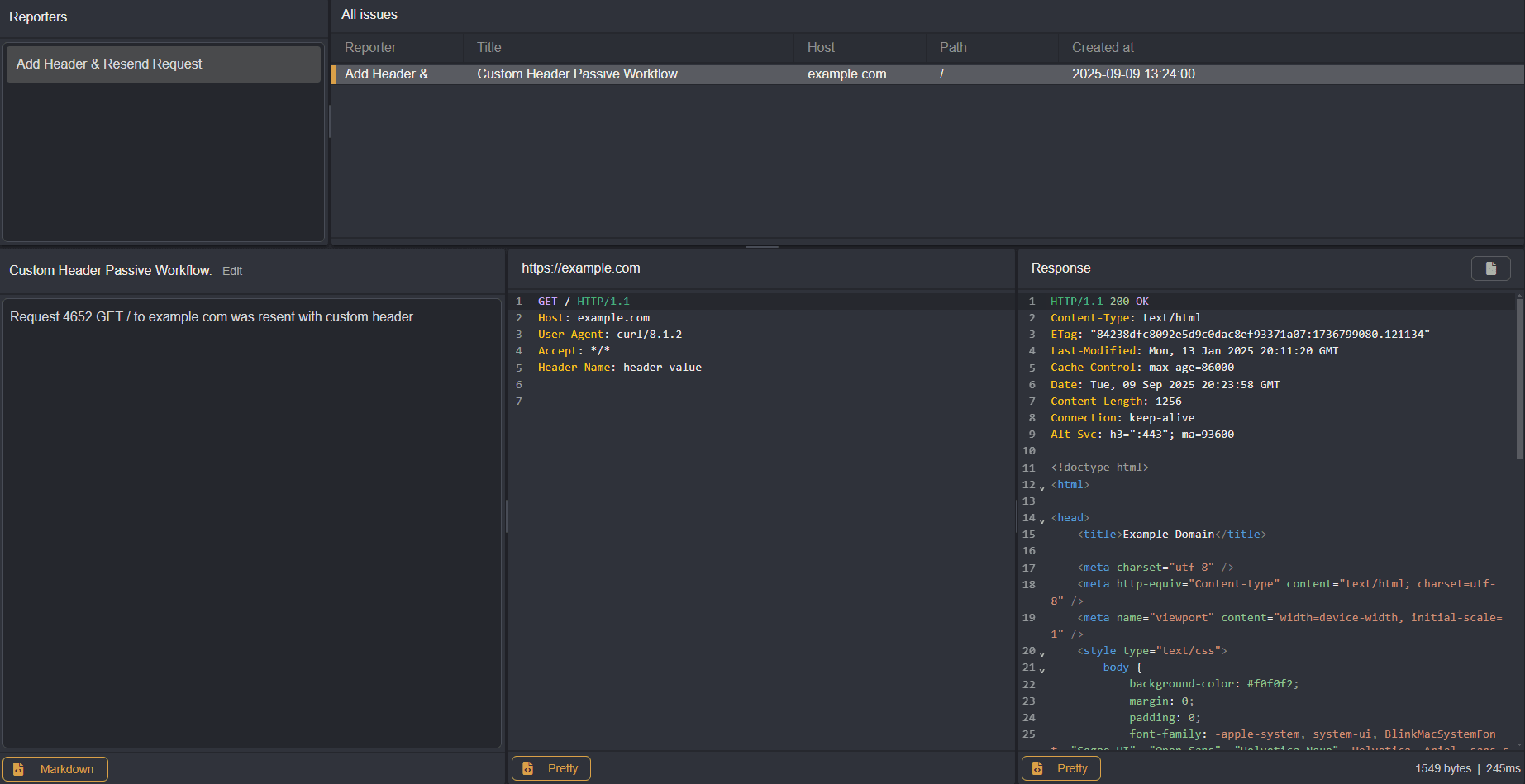

The generated finding should resemble:

The full workflow is provided below, ready to be imported.
Full workflow
{
"description": "Adds a header to a proxied request.",
"edition": 2,
"graph": {
"edges": [
{
"source": {
"exec_alias": "exec",
"node_id": 0
},
"target": {
"exec_alias": "exec",
"node_id": 2
}
},
{
"source": {
"exec_alias": "true",
"node_id": 2
},
"target": {
"exec_alias": "exec",
"node_id": 3
}
},
{
"source": {
"exec_alias": "false",
"node_id": 2
},
"target": {
"exec_alias": "exec",
"node_id": 1
}
},
{
"source": {
"exec_alias": "exec",
"node_id": 3
},
"target": {
"exec_alias": "exec",
"node_id": 4
}
}
],
"nodes": [
{
"alias": "on_intercept_request",
"definition_id": "caido/on-intercept-request",
"display": {
"x": -210,
"y": -20
},
"id": 0,
"inputs": [],
"name": "On intercept request",
"version": "0.1.0"
},
{
"alias": "passive_end",
"definition_id": "caido/passive-end",
"display": {
"x": 210,
"y": 70
},
"id": 1,
"inputs": [],
"name": "Passive End",
"version": "0.1.0"
},
{
"alias": "in_scope",
"definition_id": "caido/in-scope",
"display": {
"x": 0,
"y": -10
},
"id": 2,
"inputs": [
{
"alias": "request",
"value": {
"data": "$on_intercept_request.request",
"kind": "ref"
}
}
],
"name": "In Scope",
"version": "0.1.0"
},
{
"alias": "javascript",
"definition_id": "caido/http-code-js",
"display": {
"x": 210,
"y": -90
},
"id": 3,
"inputs": [
{
"alias": "request",
"value": {
"data": "$on_intercept_request.request",
"kind": "ref"
}
},
{
"alias": "code",
"value": {
"data": "/**\n * @param {HttpInput} input\n * @param {SDK} sdk\n * @returns {MaybePromise<Data | undefined>}\n */\nexport async function run({ request, response }, sdk) {\n if (request) { \n const spec = request.toSpec();\n spec.setHeader(\"Header-Name\", \"header-value\");\n\n let resend = await sdk.requests.send(spec);\n \n if (resend.response) {\n let finding = {\n title: `Custom Header Passive Workflow.`,\n description: `Request ${resend.request.getId()} ${resend.request.getMethod()} ${resend.request.getPath()} to ${resend.request.getHost()} was resent with custom header.`,\n reporter: \"Add Header & Resend Request\",\n request: resend.request\n };\n await sdk.findings.create(finding);\n }\n }\n}",
"kind": "string"
}
}
],
"name": "Javascript",
"version": "0.1.0"
},
{
"alias": "passive_end_1",
"definition_id": "caido/passive-end",
"display": {
"x": 420,
"y": -90
},
"id": 4,
"inputs": [],
"name": "Passive End 1",
"version": "0.1.0"
}
]
},
"id": "eb670e67-9752-4324-9fb8-1aa529e7e9da",
"kind": "passive",
"name": "Add Header"
}
