GraphQL

As you interact with the Caido GUI (client component), a variety of GraphQL API queries, mutations, and subscriptions are generated and sent to the Caido CLI (server component). These operations are responsible for fetching data, performing actions, and updating the interface with the latest data.

GraphQL Playground

The GraphQL API schema is available via a Playground IDE. To access it, navigate to http://127.0.0.1:8080/graphql or click on the account button in the top-right corner of the Caido user-interface and select GraphQL Playground.

TIP

A visual representation of the schema can be viewed at https://graphql-explorer.caido.io.

NOTE

Caido's GraphQL API is intentionally public to assist with the development of third-party tools. However, stability is not guaranteed as each release is likely to include changes to the schema.

Authentication

For the majority of operations, since they execute in the context of your user session/instance, authentication is required.

If your token is not already included in the Headers tab of the GraphQL Playgound interface, to obtain it:

1. Authenticate into your account.
2. Open the developer tools in the Caido GUI with CTRL+SHIFT+I.
3. Enter the following into the Console tab terminal:

JSON.parse(localStorage.CAIDO_AUTHENTICATION).accessToken;

4. The access token can then be set in the Headers tab:

{
  "Authorization": "Bearer <token>"
}

NOTE

The access token expires after a period of 7 days. If your project requires consistent authentication, utilize the OAuth startAuthenticationFlow mutation and createdAuthenticationToken subscription.

Example: Using Replay

To gain a better understanding of how Caido operates, the following GraphQL operations are involved in creating a new Replay session and sending the request.

CreateReplaySession

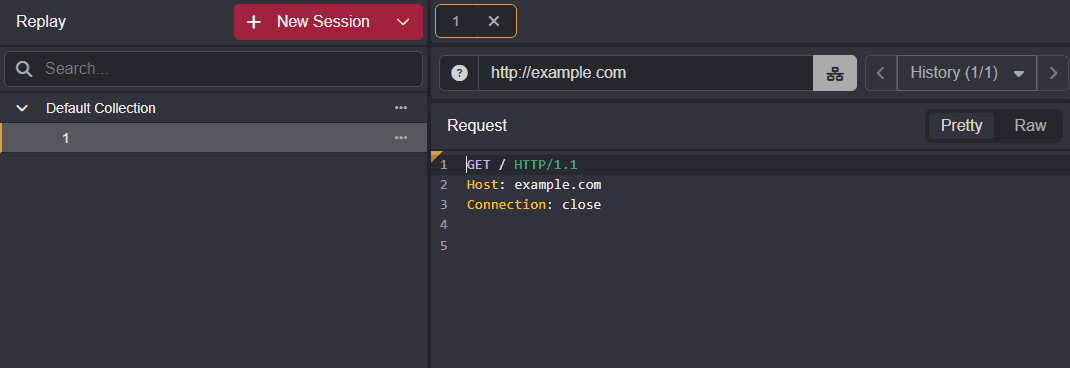

The CreateReplaySession mutation creates a new request editor in the Replay interface.

mutation CreateReplaySession($input: CreateReplaySessionInput!) {
  createReplaySession(input: $input) {
    session {
      id
      name
      activeEntry {
        id
      }
      entries(first: 10) {
        edges {
          node {
            id
          }
        }
        pageInfo {
          hasNextPage
          hasPreviousPage
          startCursor
          endCursor
        }
      }
      collection {
        id
      }
    }
  }
}

Variables

Typically, clicking on the + New Session button generates an empty request as no fields are specified in the input object. However, the connection and request can be included directly.

{
  "input": {
    "requestSource": {
      "raw": {
        "connectionInfo": {
          "host": "example.com",
          "port": 80,
          "isTLS": false,
          "SNI": "example.com"
        },
        "raw": "R0VUIC8gSFRUUC8xLjENCkhvc3Q6IGV4YW1wbGUuY29tDQpDb25uZWN0aW9uOiBjbG9zZQ0KDQo="
      }
    }
  }
}

Response Data

{
  "data": {
    "createReplaySession": {
      "session": {
        "id": "1",
        "name": "1",
        "activeEntry": {
          "id": "1"
        },
        "entries": {
          "edges": [
            {
              "node": {
                "id": "1"
              }
            }
          ],
          "pageInfo": {
            "hasNextPage": false,
            "hasPreviousPage": false,
            "startCursor": "eyJpZCI6IjEiLCJvcmRlcl92YWx1ZSI6bnVsbH0=",
            "endCursor": "eyJpZCI6IjEiLCJvcmRlcl92YWx1ZSI6bnVsbH0="
          }
        },
        "collection": {
          "id": "1"
        }
      }
    }
  }
}

The corresponding request and response pair are:

POST /graphql HTTP/1.1
Host: 127.0.0.1:8080
Connection: keep-alive
Content-Length: 746
sec-ch-ua-platform: "Windows"
Authorization: Bearer <token>
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Caido/0.54.1 Chrome/138.0.7204.251 Electron/37.8.0 Safari/537.36
accept: application/json, multipart/mixed
sec-ch-ua: "Not)A;Brand";v="8", "Chromium";v="138"
content-type: application/json
sec-ch-ua-mobile: ?0
Origin: http://127.0.0.1:8080
Sec-Fetch-Site: same-origin
Sec-Fetch-Mode: cors
Sec-Fetch-Dest: empty
Referer: http://127.0.0.1:8080/graphql/
Accept-Encoding: gzip, deflate, br, zstd
Accept-Language: en-US

{"query":"mutation CreateReplaySession($input: CreateReplaySessionInput!) {\n  createReplaySession(input: $input) {\n    session {\n      id\n      name\n      activeEntry {\n        id\n      }\n      entries(first: 10) {\n        edges {\n          node {\n            id\n          }\n        }\n        pageInfo {\n          hasNextPage\n          hasPreviousPage\n          startCursor\n          endCursor\n        }\n      }\n      collection {\n        id\n      }\n    }\n  }\n}","variables":{"input":{"requestSource":{"raw":{"connectionInfo":{"host":"example.com","port":80,"isTLS":false,"SNI":"example.com"},"raw":"R0VUIC8gSFRUUC8xLjENCkhvc3Q6IGV4YW1wbGUuY29tDQpDb25uZWN0aW9uOiBjbG9zZQ0KDQo="}}}},"operationName":"CreateReplaySession"}

HTTP/1.1 200 OK
content-length: 326
connection: close
vary: Origin, Access-Control-Request-Method, Access-Control-Request-Headers
content-type: application/json
access-control-allow-origin: http://127.0.0.1:8080
date: Mon, 12 Jan 2026 16:52:13 GMT

{"data":{"createReplaySession":{"session":{"id":"1","name":"1","activeEntry":{"id":"1"},"entries":{"edges":[{"node":{"id":"1"}}],"pageInfo":{"hasNextPage":false,"hasPreviousPage":false,"startCursor":"eyJpZCI6IjMiLCJvcmRlcl92YWx1ZSI6bnVsbH0=","endCursor":"eyJpZCI6IjMiLCJvcmRlcl92YWx1ZSI6bnVsbH0="}},"collection":{"id":"1"}}}}}

StartReplayTask

Clicking on the Send button generates a StartReplayTask mutation.

mutation StartReplayTask($sessionId: ID!, $input: StartReplayTaskInput!) {
  startReplayTask(sessionId: $sessionId, input: $input) {
    error {
      __typename
    }
    task {
      id
      createdAt
      replayEntry {
        id
      }
    }
  }
}

Variables

{
  "sessionId": "1",
  "input": {
    "connection": {
      "host": "example.com",
      "port": 80,
      "isTLS": false,
      "SNI": "example.com"
    },
    "raw": "R0VUIC8gSFRUUC8xLjENCkhvc3Q6IGV4YW1wbGUuY29tDQpDb25uZWN0aW9uOiBjbG9zZQ0KDQo=",
    "settings": {
      "connectionClose": true,
      "updateContentLength": true,
      "placeholders": []
    }
  }
}

Data

{
  "data": {
    "startReplayTask": {
      "error": null,
      "task": {
        "id": "8",
        "createdAt": "2026-01-12T18:50:28.4289894Z",
        "replayEntry": {
          "id": "2"
        }
      }
    }
  }
}

The corresponding request and response pair are:

POST /graphql HTTP/1.1
Host: 127.0.0.1:8080
Connection: keep-alive
Content-Length: 3976
sec-ch-ua-platform: "Windows"
authorization: Bearer r/iu/AlQOL/SINNOS6yK1b5/ZmzueaAbbEQ99su9aLTAkSlQS0zj4Rtfc7MRSVwNgM140ZiU9rcMSgKxcySFKQ==.eBF2nuQt5k74iNS4IA1SunHWQIKdPX+IvTq/zaBltkk=
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/143.0.0.0 Safari/537.36
accept: application/graphql-response+json, application/graphql+json, application/json, text/event-stream, multipart/mixed
sec-ch-ua: "Google Chrome";v="143", "Chromium";v="143", "Not A(Brand";v="24"
content-type: application/json
sec-ch-ua-mobile: ?0
Origin: http://127.0.0.1:8080
Sec-Fetch-Site: same-origin
Sec-Fetch-Mode: cors
Sec-Fetch-Dest: empty
Referer: http://127.0.0.1:8080/
Accept-Encoding: gzip, deflate, br, zstd
Accept-Language: en-GB,en-US;q=0.9,en;q=0.8

{"operationName":"startReplayTask","query":"mutation startReplayTask($sessionId: ID!, $input: StartReplayTaskInput!) {\n  startReplayTask(sessionId: $sessionId, input: $input) {\n    task {\n      ...replayTaskMeta\n    }\n    error {\n      ... on TaskInProgressUserError {\n        ...taskInProgressUserErrorFull\n      }\n      ... on PermissionDeniedUserError {\n        ...permissionDeniedUserErrorFull\n      }\n      ... on CloudUserError {\n        ...cloudUserErrorFull\n      }\n      ... on OtherUserError {\n        ...otherUserErrorFull\n      }\n    }\n  }\n}\nfragment taskMeta on Task {\n  __typename\n  id\n  createdAt\n}\nfragment connectionInfoFull on ConnectionInfo {\n  __typename\n  host\n  port\n  isTLS\n  SNI\n}\nfragment requestMetadataFull on RequestMetadata {\n  __typename\n  id\n  color\n}\nfragment responseMeta on Response {\n  __typename\n  id\n  statusCode\n  roundtripTime\n  length\n  createdAt\n  alteration\n  edited\n}\nfragment requestMeta on Request {\n  __typename\n  id\n  host\n  port\n  path\n  query\n  method\n  edited\n  isTls\n  sni\n  length\n  alteration\n  metadata {\n    ...requestMetadataFull\n  }\n  fileExtension\n  source\n  createdAt\n  response {\n    ...responseMeta\n  }\n  stream {\n    id\n  }\n}\nfragment replayEntryMeta on ReplayEntry {\n  __typename\n  id\n  error\n  createdAt\n  connection {\n    ...connectionInfoFull\n  }\n  session {\n    id\n  }\n  request {\n    ...requestMeta\n  }\n}\nfragment rangeFull on Range {\n  start\n  end\n}\nfragment replayPrefixPreprocessorFull on ReplayPrefixPreprocessor {\n  __typename\n  value\n}\nfragment replaySuffixPreprocessorFull on ReplaySuffixPreprocessor {\n  __typename\n  value\n}\nfragment replayUrlEncodePreprocessorFull on ReplayUrlEncodePreprocessor {\n  __typename\n  charset\n  nonAscii\n}\nfragment replayWorkflowPreprocessorFull on ReplayWorkflowPreprocessor {\n  __typename\n  id\n}\nfragment replayEnvironmentPreprocessorFull on ReplayEnvironmentPreprocessor {\n  __typename\n  variableName\n}\nfragment replayPreprocessorFull on ReplayPreprocessor {\n  __typename\n  options {\n    ... on ReplayPrefixPreprocessor {\n      ...replayPrefixPreprocessorFull\n    }\n    ... on ReplaySuffixPreprocessor {\n      ...replaySuffixPreprocessorFull\n    }\n    ... on ReplayUrlEncodePreprocessor {\n      ...replayUrlEncodePreprocessorFull\n    }\n    ... on ReplayWorkflowPreprocessor {\n      ...replayWorkflowPreprocessorFull\n    }\n    ... on ReplayEnvironmentPreprocessor {\n      ...replayEnvironmentPreprocessorFull\n    }\n  }\n}\nfragment replayPlaceholderFull on ReplayPlaceholder {\n  __typename\n  inputRange {\n    ...rangeFull\n  }\n  outputRange {\n    ...rangeFull\n  }\n  preprocessors {\n    ...replayPreprocessorFull\n  }\n}\nfragment requestFullFields on Request {\n  ...requestMeta\n  raw\n  edits {\n    ...requestMeta\n  }\n}\nfragment requestFull on Request {\n  ...requestFullFields\n}\nfragment replayEntryFull on ReplayEntry {\n  ...replayEntryMeta\n  raw\n  settings {\n    placeholders {\n      ...replayPlaceholderFull\n    }\n  }\n  request {\n    ...requestFull\n  }\n}\nfragment userErrorFull on UserError {\n  __typename\n  code\n}\nfragment replayTaskMeta on ReplayTask {\n  ...taskMeta\n  replayEntry {\n    ...replayEntryFull\n  }\n}\nfragment taskInProgressUserErrorFull on TaskInProgressUserError {\n  ...userErrorFull\n  taskId\n}\nfragment permissionDeniedUserErrorFull on PermissionDeniedUserError {\n  ...userErrorFull\n  permissionDeniedReason: reason\n}\nfragment cloudUserErrorFull on CloudUserError {\n  ...userErrorFull\n  cloudReason: reason\n}\nfragment otherUserErrorFull on OtherUserError {\n  ...userErrorFull\n}","variables":{"input":{"connection":{"SNI":"example.com","host":"example.com","isTLS":false,"port":80},"raw":"R0VUIC8gSFRUUC8xLjENCkhvc3Q6IGV4YW1wbGUuY29tDQpDb25uZWN0aW9uOiBjbG9zZQ0KDQo=","settings":{"connectionClose":true,"placeholders":[],"updateContentLength":true}},"sessionId":"1"}}

HTTP/1.1 200 OK
content-length: 483
connection: close
vary: Origin, Access-Control-Request-Method, Access-Control-Request-Headers
content-type: application/json
access-control-allow-origin: http://127.0.0.1:8080
date: Tue, 13 Jan 2026 16:15:03 GMT

{"data":{"startReplayTask":{"task":{"__typename":"ReplayTask","id":"2","createdAt":"2026-01-13T16:15:03.7537873Z","replayEntry":{"__typename":"ReplayEntry","id":"2","error":null,"createdAt":1768320903752,"connection":{"__typename":"ConnectionInfo","host":"example.com","port":80,"isTLS":false,"SNI":"example.com"},"session":{"id":"1"},"request":null,"raw":"R0VUIC8gSFRUUC8xLjENCkhvc3Q6IGV4YW1wbGUuY29tDQpDb25uZWN0aW9uOiBjbG9zZQ0KDQo=","settings":{"placeholders":[]}}},"error":null}}}

A traffic splitting algorithm recognizes that the request is intended for a destination server. The Caido CLI (server component) forwards the request and handles the corresponding response.

GET / HTTP/1.1
Host: example.com
Connection: close

HTTP/1.1 200 OK
Date: Mon, 12 Jan 2026 19:03:54 GMT
Content-Type: text/html
Transfer-Encoding: chunked
Connection: close
CF-RAY: 9bceeaa5af5c27ec-LAX
Last-Modified: Sat, 03 Jan 2026 05:43:21 GMT
Allow: GET, HEAD
Age: 24
cf-cache-status: HIT
Accept-Ranges: bytes
Server: cloudflare

200
<!doctype html><html lang="en"><head><title>Example Domain</title><meta name="viewport" content="width=device-width, initial-scale=1"><style>body{background:#eee;width:60vw;margin:15vh auto;font-family:system-ui,sans-serif}h1{font-size:1.5em}div{opacity:0.8}a:link,a:visited{color:#348}</style><body><div><h1>Example Domain</h1><p>This domain is for use in documentation examples without needing permission. Avoid use in operations.<p><a href="https://iana.org/domains/example">Learn more</a></div></body></html>
1


0

GetReplayEntry

To display the response, the GetReplayEntry query is used.

query GetReplayEntry($id: ID!) {
  replayEntry(id: $id) {
    id
    error
    request {
      id
      response {
        id
        statusCode
        length
        roundtripTime
        raw
        createdAt
      }
    }
  }
}

Variables

The id changes from 1 to 2 since the sent request is second in the session's history.

{
  "id": "2"
}

Data

{
  "data": {
    "replayEntry": {
      "id": "2",
      "error": null,
      "request": {
        "id": "2",
        "response": {
          "id": "1",
          "statusCode": 200,
          "length": 801,
          "roundtripTime": 116,
          "raw": "SFRUUC8xLjEgMjAwIE9LDQpEYXRlOiBNb24sIDEyIEphbiAyMDI2IDE5OjAzOjU0IEdNVA0KQ29udGVudC1UeXBlOiB0ZXh0L2h0bWwNCkNvbm5lY3Rpb246IGNsb3NlDQpDRi1SQVk6IDliY2VlYWE1YWY1YzI3ZWMtTEFYDQpMYXN0LU1vZGlmaWVkOiBTYXQsIDAzIEphbiAyMDI2IDA1OjQzOjIxIEdNVA0KQWxsb3c6IEdFVCwgSEVBRA0KQWdlOiAyNA0KY2YtY2FjaGUtc3RhdHVzOiBISVQNCkFjY2VwdC1SYW5nZXM6IGJ5dGVzDQpTZXJ2ZXI6IGNsb3VkZmxhcmUNCkNvbnRlbnQtTGVuZ3RoOiA1MTMNCg0KPCFkb2N0eXBlIGh0bWw+PGh0bWwgbGFuZz0iZW4iPjxoZWFkPjx0aXRsZT5FeGFtcGxlIERvbWFpbjwvdGl0bGU+PG1ldGEgbmFtZT0idmlld3BvcnQiIGNvbnRlbnQ9IndpZHRoPWRldmljZS13aWR0aCwgaW5pdGlhbC1zY2FsZT0xIj48c3R5bGU+Ym9keXtiYWNrZ3JvdW5kOiNlZWU7d2lkdGg6NjB2dzttYXJnaW46MTV2aCBhdXRvO2ZvbnQtZmFtaWx5OnN5c3RlbS11aSxzYW5zLXNlcmlmfWgxe2ZvbnQtc2l6ZToxLjVlbX1kaXZ7b3BhY2l0eTowLjh9YTpsaW5rLGE6dmlzaXRlZHtjb2xvcjojMzQ4fTwvc3R5bGU+PGJvZHk+PGRpdj48aDE+RXhhbXBsZSBEb21haW48L2gxPjxwPlRoaXMgZG9tYWluIGlzIGZvciB1c2UgaW4gZG9jdW1lbnRhdGlvbiBleGFtcGxlcyB3aXRob3V0IG5lZWRpbmcgcGVybWlzc2lvbi4gQXZvaWQgdXNlIGluIG9wZXJhdGlvbnMuPHA+PGEgaHJlZj0iaHR0cHM6Ly9pYW5hLm9yZy9kb21haW5zL2V4YW1wbGUiPkxlYXJuIG1vcmU8L2E+PC9kaXY+PC9ib2R5PjwvaHRtbD4K",
          "createdAt": 1768244634848
        }
      }
    }
  }
}

The corresponding request and response pair are:

POST /graphql HTTP/1.1
Host: 127.0.0.1:8080
Connection: keep-alive
Content-Length: 315
sec-ch-ua-platform: "Windows"
Authorization: Bearer 3w41ccRmsftO0MOiWn7zSfDyEaEkZV0eYzU7MZWeyy/l/74QVbQ7pjOVDFl3ufyONEwH7NpXtRiiroi3F6rRBw==.Z78fF5XYnyFlW4QhqPefauH5q0tEVy4+Btyk0Bh1L0I=
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Caido/0.54.1 Chrome/138.0.7204.251 Electron/37.8.0 Safari/537.36
accept: application/json, multipart/mixed
sec-ch-ua: "Not)A;Brand";v="8", "Chromium";v="138"
content-type: application/json
sec-ch-ua-mobile: ?0
Origin: http://127.0.0.1:8080
Sec-Fetch-Site: same-origin
Sec-Fetch-Mode: cors
Sec-Fetch-Dest: empty
Referer: http://127.0.0.1:8080/graphql/
Accept-Encoding: gzip, deflate, br, zstd
Accept-Language: en-US

{"query":"query GetReplayEntry($id: ID!) {\n  replayEntry(id: $id) {\n    id\n    error\n    request {\n      id\n      response {\n        id\n        statusCode\n        length\n        roundtripTime\n        raw\n        createdAt\n      }\n    }\n  }\n}","variables":{"id":"2"},"operationName":"GetReplayEntry"}

HTTP/1.1 200 OK
content-length: 1244
connection: close
vary: Origin, Access-Control-Request-Method, Access-Control-Request-Headers
content-type: application/json
access-control-allow-origin: http://127.0.0.1:8080
date: Mon, 12 Jan 2026 19:17:51 GMT

{"data":{"replayEntry":{"id":"2","error":null,"request":{"id":"2","response":{"id":"1","statusCode":200,"length":801,"roundtripTime":116,"raw":"SFRUUC8xLjEgMjAwIE9LDQpEYXRlOiBNb24sIDEyIEphbiAyMDI2IDE5OjAzOjU0IEdNVA0KQ29udGVudC1UeXBlOiB0ZXh0L2h0bWwNCkNvbm5lY3Rpb246IGNsb3NlDQpDRi1SQVk6IDliY2VlYWE1YWY1YzI3ZWMtTEFYDQpMYXN0LU1vZGlmaWVkOiBTYXQsIDAzIEphbiAyMDI2IDA1OjQzOjIxIEdNVA0KQWxsb3c6IEdFVCwgSEVBRA0KQWdlOiAyNA0KY2YtY2FjaGUtc3RhdHVzOiBISVQNCkFjY2VwdC1SYW5nZXM6IGJ5dGVzDQpTZXJ2ZXI6IGNsb3VkZmxhcmUNCkNvbnRlbnQtTGVuZ3RoOiA1MTMNCg0KPCFkb2N0eXBlIGh0bWw+PGh0bWwgbGFuZz0iZW4iPjxoZWFkPjx0aXRsZT5FeGFtcGxlIERvbWFpbjwvdGl0bGU+PG1ldGEgbmFtZT0idmlld3BvcnQiIGNvbnRlbnQ9IndpZHRoPWRldmljZS13aWR0aCwgaW5pdGlhbC1zY2FsZT0xIj48c3R5bGU+Ym9keXtiYWNrZ3JvdW5kOiNlZWU7d2lkdGg6NjB2dzttYXJnaW46MTV2aCBhdXRvO2ZvbnQtZmFtaWx5OnN5c3RlbS11aSxzYW5zLXNlcmlmfWgxe2ZvbnQtc2l6ZToxLjVlbX1kaXZ7b3BhY2l0eTowLjh9YTpsaW5rLGE6dmlzaXRlZHtjb2xvcjojMzQ4fTwvc3R5bGU+PGJvZHk+PGRpdj48aDE+RXhhbXBsZSBEb21haW48L2gxPjxwPlRoaXMgZG9tYWluIGlzIGZvciB1c2UgaW4gZG9jdW1lbnRhdGlvbiBleGFtcGxlcyB3aXRob3V0IG5lZWRpbmcgcGVybWlzc2lvbi4gQXZvaWQgdXNlIGluIG9wZXJhdGlvbnMuPHA+PGEgaHJlZj0iaHR0cHM6Ly9pYW5hLm9yZy9kb21haW5zL2V4YW1wbGUiPkxlYXJuIG1vcmU8L2E+PC9kaXY+PC9ib2R5PjwvaHRtbD4K","createdAt":1768244634848}}}}}
